20-Pin 1.0mm Pitch HRS DF19-20S-1C Shielded Flat LVDS Cable Assembly
This high-quality 20-pin LVDS cable assembly features a 1.0mm pitch HRS DF19-20S-1C connector with both ends shielded, specifically designed for hydraulic jack applications and display signal transmission.
Product Specifications
| Cable Type |
32AWG, 30AWG, 28AWG, 26AWG
LCD 20-core single/double shield cable
LCD 32-core single/double shield cable
LCD 20/32-core non-shield cable |
| Cable Color |
Black/Grey |
| Connectors |
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic |
| Cable Length |
50mm - 15000mm |
| Processing Methods |
Crimping, pressing, and soldering types |
| Pin Out Connection |
Customized according to customer specifications |
| Connector Pitch Range |
0.3mm - 4.2mm |
| Performance Characteristics |
Excellent signal transfer, clear picture quality, stable performance without shaking or transfer issues |
Key Advantages
Direct Manufacturing
Factory-direct pricing and quality control
Competitive Pricing
High quality at competitive prices
Fast Delivery
Short lead times for all orders
Applications
- LCD Displays & Advertising Machines
- Phones, Laptops, Computers, PDAs
- Cameras, LCM, Notebooks, Tablet PCs
- HDD, Car DVD Systems
- Digital Cameras & Airbag Systems
- Inkjet Printers & Pictorial Machines
- Flat Screen TVs & Sound Systems
- Printers, Scanners, Fax Machines, Copiers
Quality & Certifications
ISO Certificate: ISO9001:2008
Standards: ISO/RoHS/UL Compliant
Performance Testing: 100% electrical and performance testing
Services: OEM/ODM services available

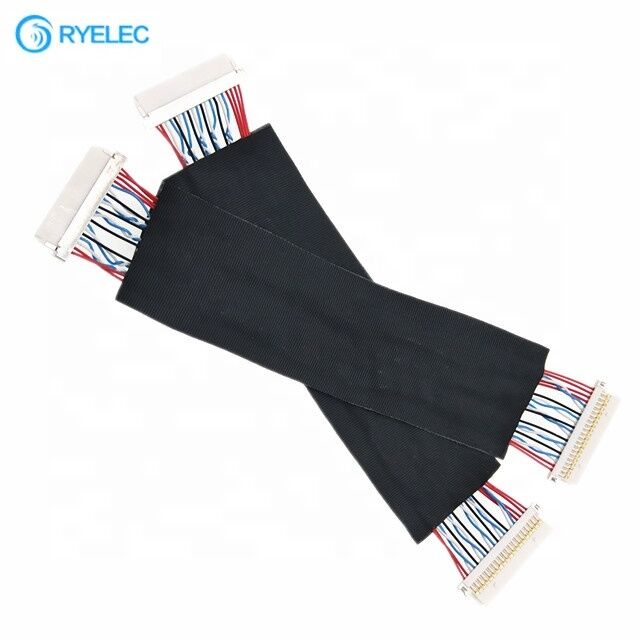

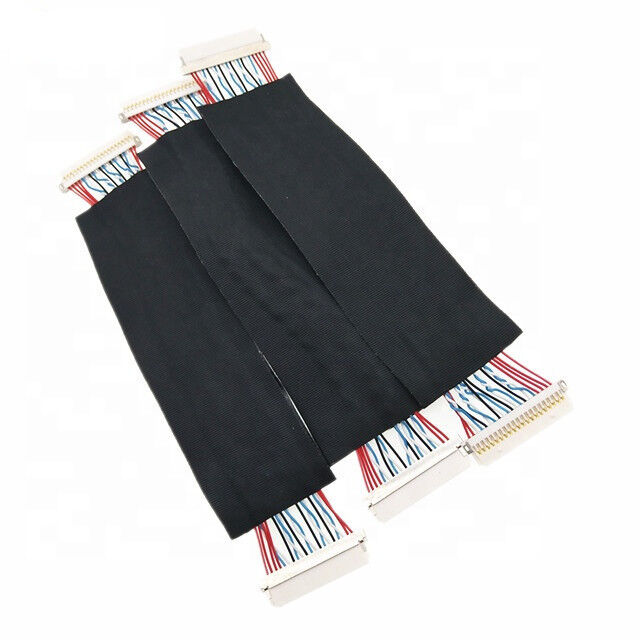

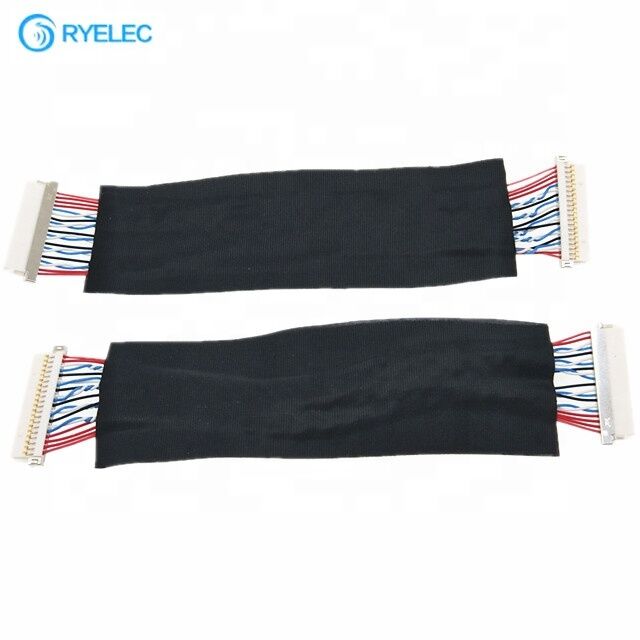

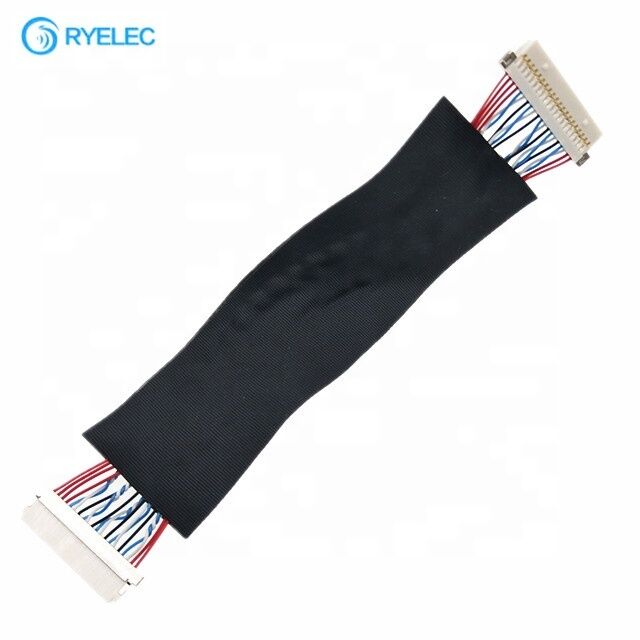

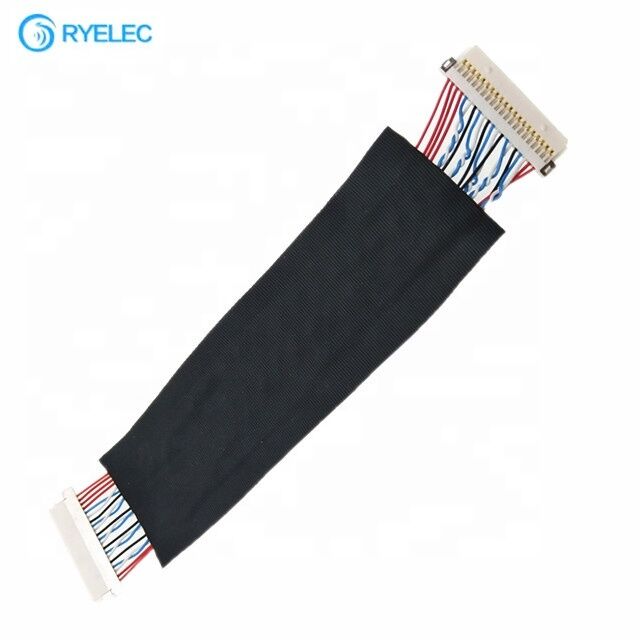

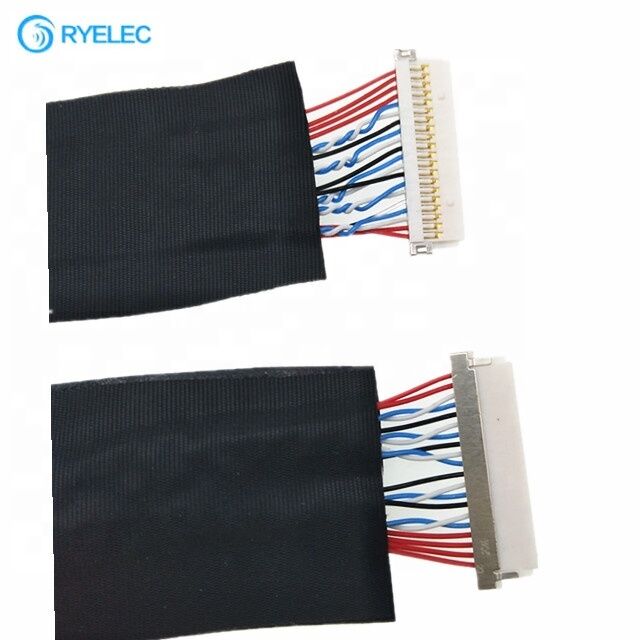

Product Images
About RY Electronics
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in both large and small volumes to meet your specific requirements.
Our Manufacturing Capabilities
- Custom cable assemblies (LVDS cable/Flat cable/RF cable/wire harness)
- GPS/WIFI/ISM/GSM/3G/4G antennas
- RF connectors and related components
Company Advantages
Quality Control
UL, CE, ROHS certified, ISO9001:2008
Low MOQ
5-50 pieces depending on product type
Fast Delivery
2-15 days, guaranteed on-time delivery
After-Sales Service
Technical support and return services
Warranty
1-year comprehensive warranty
Custom Services
Complete OEM/ODM services available
Trade Assurance: Enjoy 100% product quality protection, 100% on-time shipment protection, and 100% payment protection for your covered amount.
Certifications
Packing & Delivery
Frequently Asked Questions
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: Can I get some samples?
A: Yes, sample orders are available for quality check and market testing (freight collect payment).
Q: What's the delivery time?
A: Samples: 1-3 days production time
Production orders: 3-7 days production time
Q: What's your payment term?
A: We primarily accept T/T, with other payment methods negotiable.
Q: What about quality problems?
A: We provide technical support and return services for any quality issues.
Q: How to contact us?
A: Send your inquiry details below and click "Send" - free samples and detailed answers await you.
