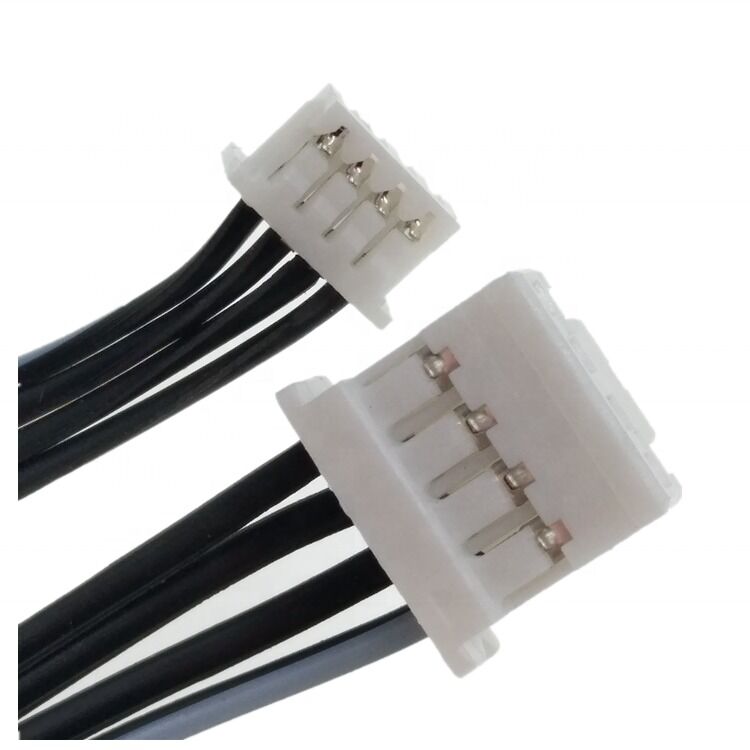

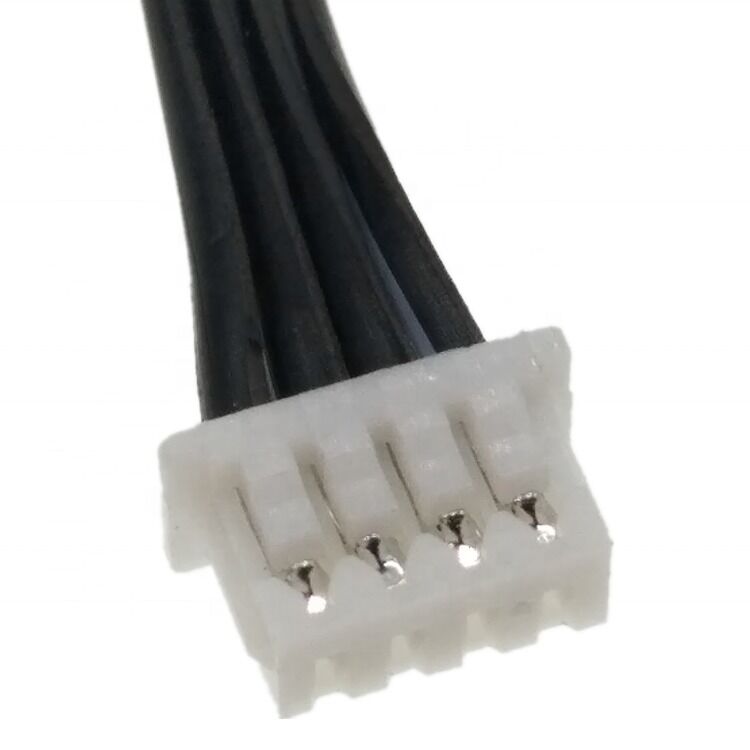

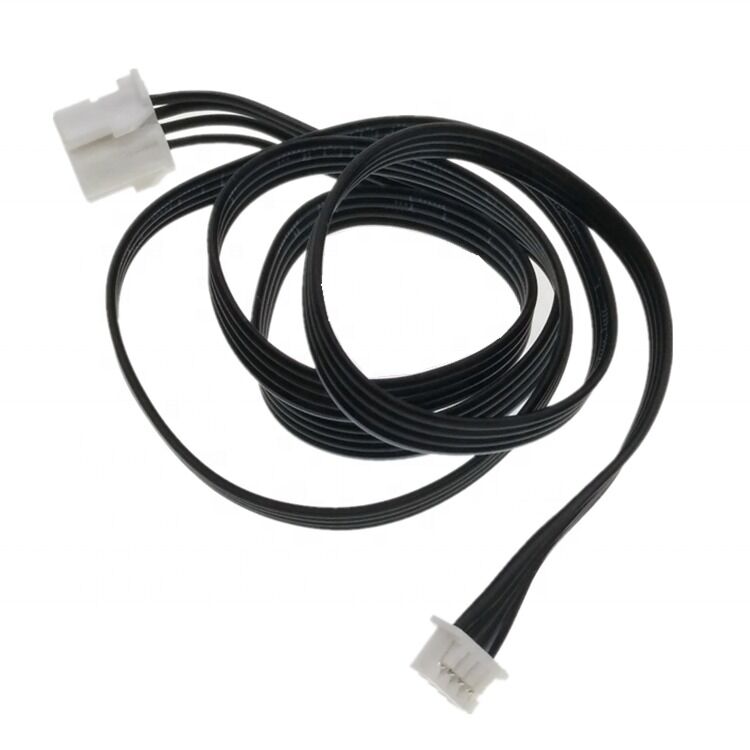

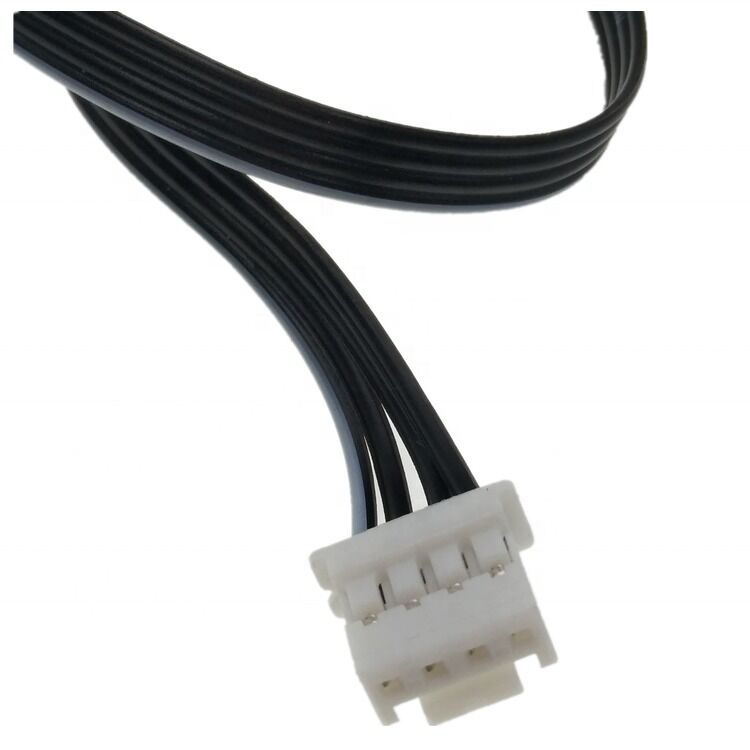

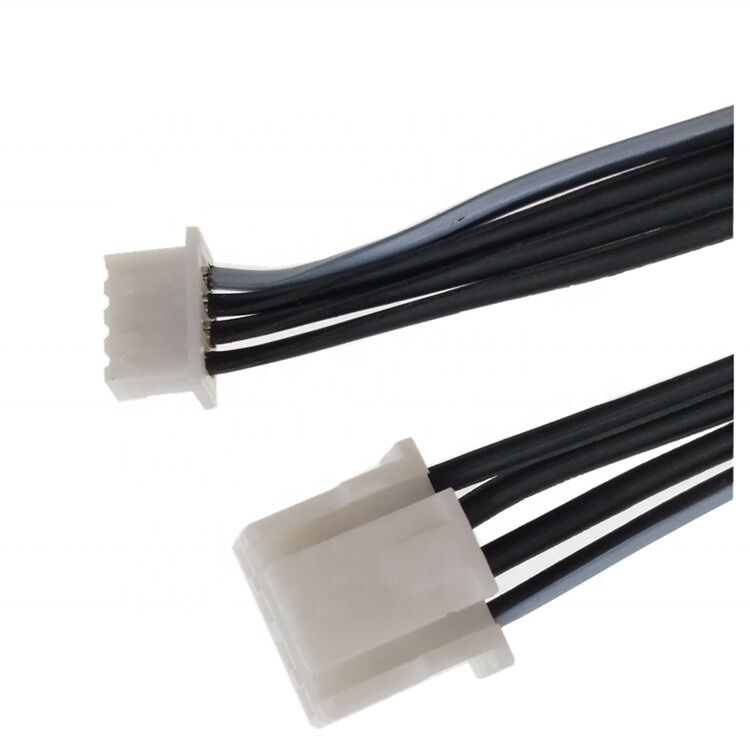

Name: Custom Wire Harness with 2.0 Pitch JST Connector Cable and 4Pin 24AWG Flat Ribbon Cable in 300 mm Length
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: RY-12461
Price: 4.10 USD
Availability: InStock

Дом > ПРОДУКТЫ > изготовленная на заказ проводка провода >

Custom Wire Harness with 2.0 Pitch JST Connector Cable and 4Pin 24AWG Flat Ribbon Cable in 300 mm Length

2.0 Pitch JST Connector Cable

4Pin 24AWG Flat Ribbon Cable

300 mm Length Custom Wire Harness

Место происхождения:

Цзянсу, Китай

Фирменное наименование:

Номер модели:

RY-12461

Свяжитесь мы

Спросите цитату

Custom Wire Harness with 2.0 Pitch JST Connector Cable and 4Pin 24AWG Flat Ribbon Cable in 300 mm Length

Детали продукта

Материал проводника:

Полуженная медь

Тип разъема:

Адаптер

Изоляционный материал:

PVC, резиновый

Длина:

300 мм, 150 мм, 100 мм, 250 мм, 350 мм, 200 мм, 120 мм

Номинальное напряжение:

12 В

Ряд проводника:

6~64P

Разъем:

Позолоченное /nickel-plated

Ряд тангажа кабеля:

0.8mm, 1.0mm, 1.27mm

Контакты разъема:

6~64P

Диапазон продольного тока соединителя:

1.27mm, 2.0mm, 2.54mm

Номинальный ток:

1AMP

Максимальное напряжение:

500 В переменного тока / 1 минута

Устойчивость к изоляции:

1000MΩ

Контактное сопротивление:

15mΩ

Рабочая температура:

-40°С ~ +105°С

Условия оплаты & доставки

Количество мин заказа

Родственные продукты

PWM Fan Splitter with 4Pin Male to Fan and 1 to 4 Female Connectors Using 22AWG PVC Cable

Получите самую лучшую цену

White Sleeved PCIe Power Cable Female to Dual 8P(6+2)pin Male GPU VGA Power Cable with 16AWG/18AWG and 20cm Length

Получите самую лучшую цену

Customized Length 3.5mm Audio Cable with Multiple Connector Options and ISO9001 Certification for High-Quality Stereo Audio Transfer

Получите самую лучшую цену

IP65 19.2 mm Panel Mount 12v SPST Momentary Push Button Switch with 2Pin Dupont and 50cm Cable

Получите самую лучшую цену

Свяжитесь мы

86--13405295160

info@rygroup.net

Контакт теперь

Характер продукции

JST PAP-04V-S 2.0 Pitch to Molex 51021-0400 125 Pitch Flat Ribbon Cable

Product Specifications

Wire Model	UL2678, UL2651
Cable Pitch Range	0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range	0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range	24-30AWG
Connector Pins	6~40P, 6~50P, 6~64P
Cable Color	Grey with red edge, Grey with blue edge, Black with white edge
Connector Color	Black, grey, red
Cable Length	10cm, 15cm, 30cm or customized
Applications	Computer/desktop data transfer, Power transfer, Electronics, Communication data transfer
Certifications	Hook Up wire, UL, VDE, CSA
Material	SORY standard PBT
Terminals	Bronze and phosphor bronze
Connector	Gold-plated / nickel-plated
Rated Current	1Amp
Maximum Voltage	AC 500V / 1Minute
Insulation Resistance	1000mΩ
Contact Resistance	15mΩ
Operating Temperature	-40°C ~ +105°C

Product Images

About RY Electronics

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

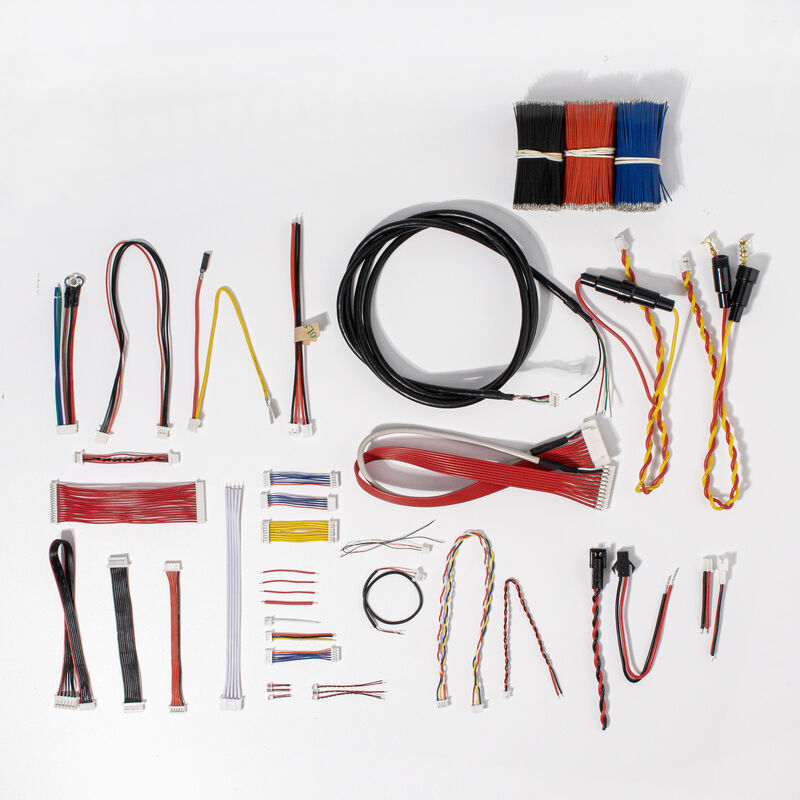

Our manufacturing facilities can build many types of custom cable assembly (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Advantages:

Quality control: Most products have UL, CE, ROHS certification. ISO9001:2008 certified.
Low MOQ: 5pcs/10pcs/20pcs/50pcs, depending on product type.
Fast Delivery Time: 2-15 days, On-Time Delivery.
Good After-Sales Service: Technical support or return service available.
1 Year Warranty
OEM/ODM service available.
Alibaba Trade Assurance for 100% product quality, on-time shipment, and payment protection.

Certifications

Packing & Delivery

Frequently Asked Questions

Q: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q: Can I get some samples?

A: Yes, sample orders are available for quality check and market test (freight collect payment).

Q: What's the delivery time?

A: Samples take 1-3 days to produce. Production orders take 3-7 days.

Q: What's your payment term?

A: We accept PAYPAL, T/T, and other negotiable payment methods.

Q: What about quality problems?

A: We provide technical support or return service for any quality issues.

Q: How to contact us?

A: Send your inquiry details for free samples and detailed information.
